Description

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.070″. Right Side. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

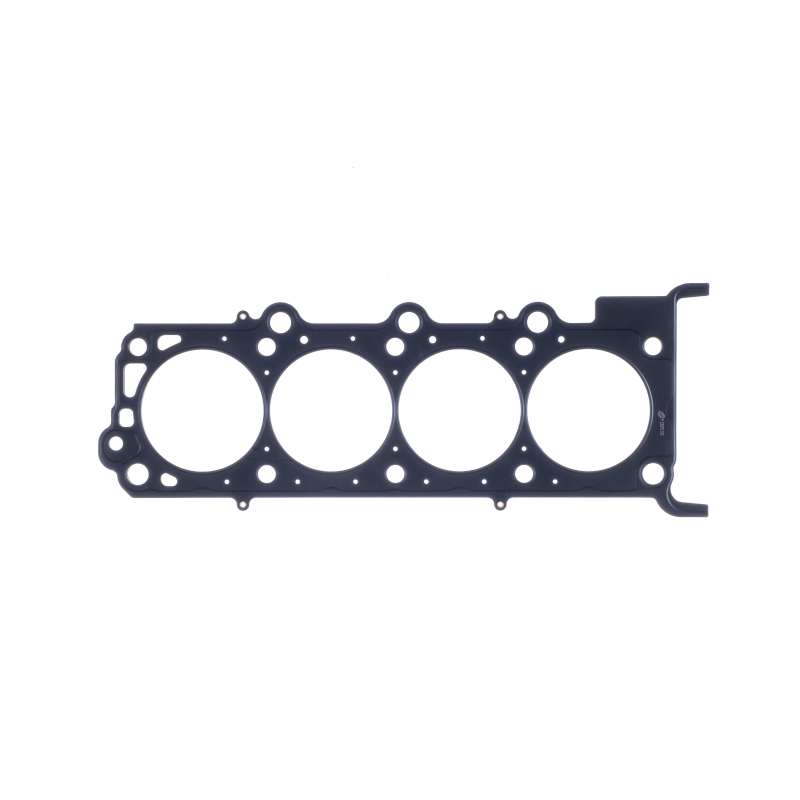

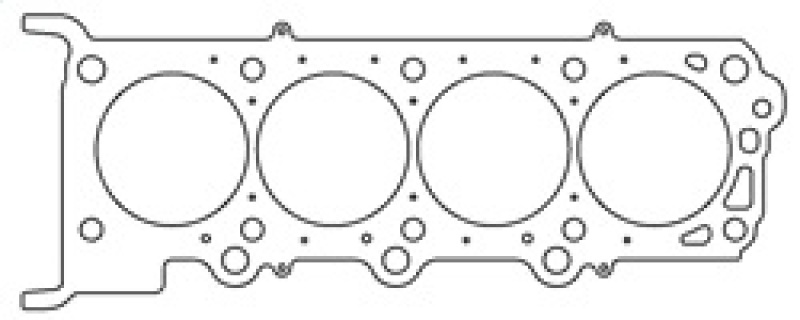

Ford 4.6L Modular V8 .070in. MLS Cylinder Head Gasket; 94mm Bore; SOHC; 3-Valve; RHS

Fitment:
2003 Ford Mustang
2003 Lincoln Aviator
2004 Ford Mustang
2004 Lincoln Aviator
2005 Ford Mustang
2006 Ford Explorer
2006 Ford Mustang
2006 Mercury Mountaineer
2007 Ford Explorer
2007 Ford Explorer Sport Trac
2007 Ford Mustang
2007 Mercury Mountaineer
2008 Ford Explorer
2008 Ford Explorer Sport Trac
2008 Ford Mustang
2008 Mercury Mountaineer
2009 Ford Explorer
2009 Ford Explorer Sport Trac
2009 Ford F-150
2009 Ford Mustang
2009 Mercury Mountaineer
2010 Ford Explorer
2010 Ford Explorer Sport Trac
2010 Ford F-150
2010 Ford Mustang
2010 Mercury Mountaineer
